Digital Turn Around

Highlights:
  • Bouquet Management

  • PID Remapping

  • Turn-Around Mode for Transport Stream Conversion

  • Secure Reliable Transport (SRT)

  • BISS-CA Encryption Support

  • SNMP Management & Monitoring

Secure & Reliable Delivery with Bouquet Management

These hardware-based professional grade multiplexer products support the multiplexing and de-multiplexing of ASI & IP transport streams for distribution. With an easy-to-use browser-based interface for bouquet management and the ability to secure your transmission with SRT or BISS-CA, these AFN-250 platform devices are ideal for mid-sized re-multiplexing and stream processing applications.

For applications with greater throughput needs, Adtec offers 1RU solutions in our AFN-1000 frame.



12 / 8 / 4 ASI input solutions available.

Digital Turn Around for Distribution

SRT from Cloud

Easy to use bouquet management software

Distribution Network

Local Encoding

IRD

ASI or IP Inputs from multiple sources
AdTec Notes:

Portable Multiplexer Configuration​s:

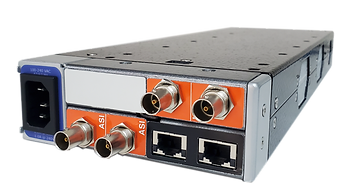

     For smaller operations, the AFN-250 frame model offers a smaller, portable, more economical solution. This offering is perfect for on-the-go applications and can be mounted in a 1 RU space with the purchase of rack-mount hardware.​​

Models:
DTA250-2

2 Port ASI / IP Multiplexer

Supports SRT & BISS-CA Encryption

DTA250-4

4-Port ASI / IP Multiplexer

Supports SRT & BISS-CA Encryption


IP Input/Output Standards:

MPEG 2 RTP v2 transport ( RFC 3550 )

Input/Output Rates: 1 - 185Mbps

​

MPEG 2 UDP transport

Input/Output Rates: 1 - 185Mbps

​

SRT transport

Input/Output Rates: 1 - 60Mbps

​

Encryption:

BISS-CA

SRT



* Multiple Virtual IP Inputs/Outputs Possible

​

All Models Support Table Generation when in Standard Multiplexer Mode:
​

MPEG Program Specific Information (PSI) table compliance:

PAT / CAT / PMT

​

DVB Service Information (SI) static table compliance:

SDT / NIT / EIT / TDT/TOT

​

ATSC A65B (PSIP) static table compliance:

MGT (TVCT) – Terrestrial / STT / RRT / EIT 0-3

ASI Input:

Asynchronous Serial Interface per

EN500083-9 / ISO13818-1 MPEG 2 Transport Stream per EN 50083-9:1997 (188 byte only)

​

Rates:

DVB-ASI 185Mbps (SPTS and MPTS).

The aggregate sum of all inputs on the carrier must fall within the supported limit of 185Mbps.

​

​

ASI Output:

Asynchronous Serial Interface per

EN500083-9 / ISO13818-1 MPEG 2 Transport Stream per EN 50083-9:1997 (188 byte only)

​

Rates:

DVB-ASI 210Mbps (SPTS and MPTS).

The aggregate sum of all outputs must fall within

the supported limit of 210Mbps. per carrier.

Mirrored outputs are not additive.

​

Encryption:

BISS-CA
